Plugin UniverseMop
Eighteen voice OPL3 FM General MIDI instrument, capped at eight voices by default, based on mop by M. Glargaard. The AdLib Sound Blaster sound of DOS-era games: FM timbres from mop's own bank, a drum kit on channel 10, and every control answering to a MIDI CC.
| Homepage | https://strandz.it/jigdaw/plugins/mop/ |
|---|---|
| Vendor | danja |
| Formats | Jig |
| Roles | Instrument, Audio Instrument |
| Accepts | MIDI |
| Produces | Audio |
| Requires | MidiEvents |
| Categories | instrument |
| Price | free |
| Source | open source |
| Licence | Zlib |
| Also known as | https://strandz.it/jigdaw/plugins/mop/ |

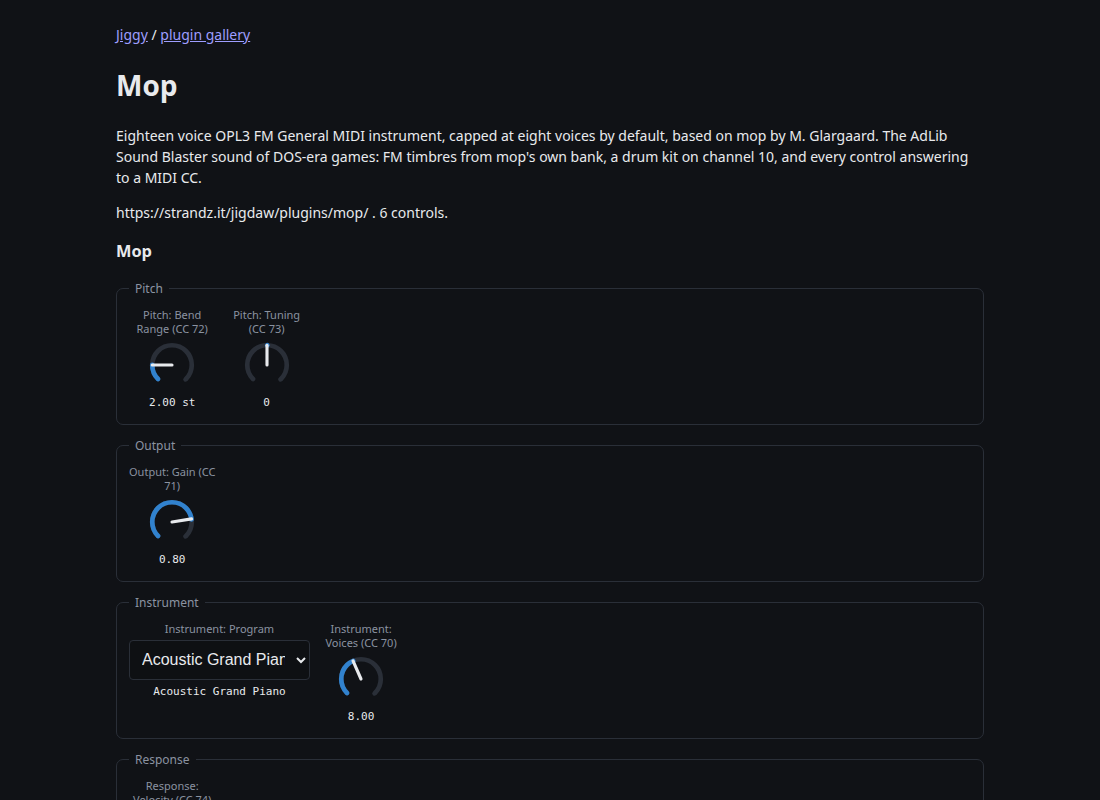

| Parameters | 6: Instrument: Program, Instrument: Voices, Output: Gain, Pitch: Bend Range, Pitch: Tuning, Response: Velocity |
| Caution | Eight voices by default out of the eighteen the chip has. A ninth note steals the oldest voice rather than being refused; raise Voices toward eighteen for dense arrangements. Percussion is MIDI channel 10, notes 35 to 81. Pitched notes play on any other channel. The Program control sets the instrument on every melodic channel at once, which is how presets are auditioned. An incoming program change overrides a single channel without moving the panel. Every control but Program answers to a MIDI CC as well, one controller per port as the profile's midi:binding declarations say. A host automating a parameter and a controller sending its CC will fight. Channel volume, expression, pan, sustain and pitch bend arrive as MIDI on each channel and are not panel controls: CC 7, 11, 10 and 64 behave as mop does. |
| IRI | http://purl.org/stuff/plugin-universe/plugin/mop-ad41d162 |
About this plugin
Nobody has written notes on this one yet. Write the first.
Provenance
Harvested from jigdaw, whose metadata is CC0-1.0 . https://github.com/danja/jigdaw
